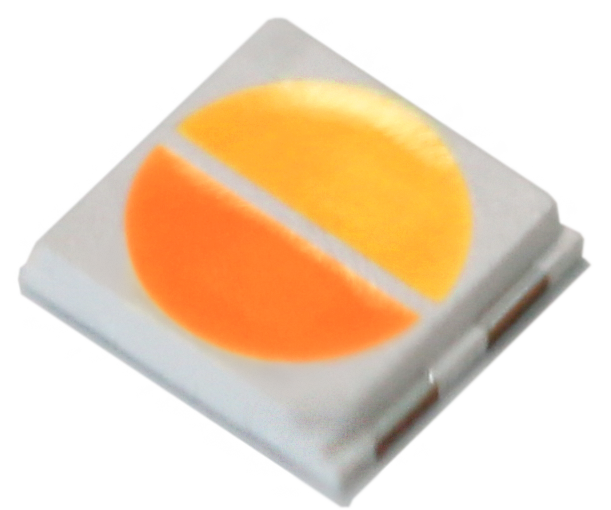

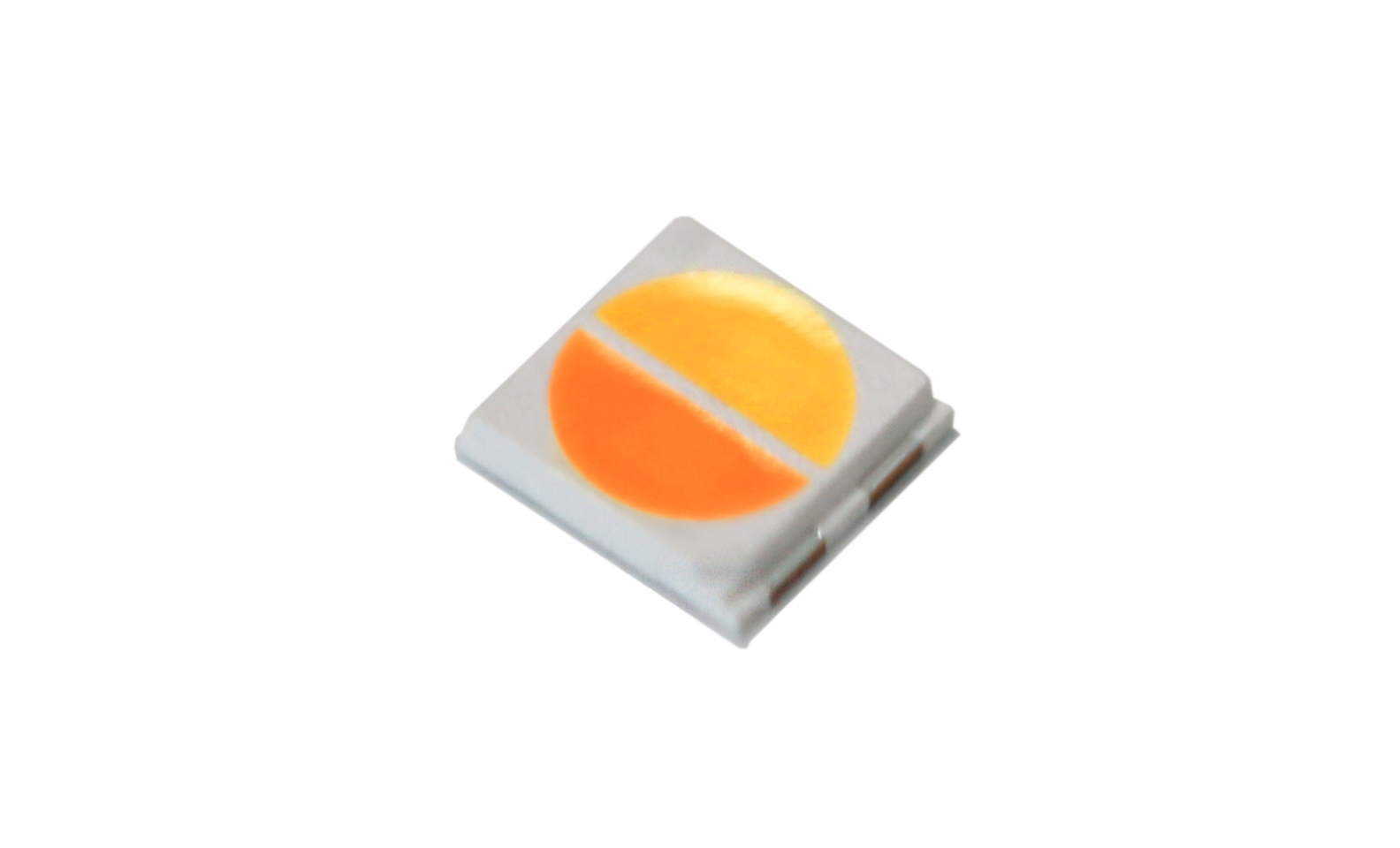

BC 3032 (0.45W)

YUJILEDS^® BC series 3032 SMD provides a high CRI and high efficacy solution with the specific design of 2-in-1. This compact layout offers easier diffusion capability because of the feature of closing to a spot source.

Product code

If (mA)

Vf (V)

Luminous Flux (lm)

CCT

CRI

TM-30

Rf / Rg

TLCI

P3200006.35

150

2.8 – 3.4

44 – 60

3200K-

5600K

>95

92 / 100

P3200006.26

46 – 60

2700K-

6500K

>95 / >93 (@6500K)

92 / 100

Feature

– Industrial highest CRI performance

– 3.0mm × 3.2mm package

– TLCI & TM-30 specified

– SimpleBinning solution

Application

– High-end architectural lighting

– Photographic/broadcast lighting

– Human-centric lighting

– Photoelectric device and relevant research

Resource

Datasheet: [P3200006.00-2.4] YJ-BC-3032-G03
