High CRI 95+ Dynamic Tunable White LED (BC Series)

Yujileds® BC series LED is based on the efficient blue (typical 450nm) die, mixing with Yuji advanced phosphors and specifically designed spectral recipes. Although there are more and more nominal “high CRI LED” manufacturers on the market, after relevant tests and analyses, it is proud to say that Yujileds® BC series LED is still one of the top performance products on the global markets. Achieving typical Ra 97 and minimum Ra 95, the stability and consistent quality in mass production are verified by statistical identification.

Product code RATED CURRENT CCT Power (W) Luminous Flux(lm) CRI TM-30
Rf / Rg
TLCI
B3210010.26 600mA(per color) 2700K2700K – 6500K6500K 21.6 2200 >95 92/100 97
B3210010.35 3000K 3200K3200K – 5000K 5600K5600K 2300 >95 92/100 97
Feature

– Industrial grade high CRI performance, TLCI & TM-30 specified

– Dotless bicolor design

– Ultra consistent and precise color with Yujileds® SimpleBinning technology

(equal to <3-step MacAdam)

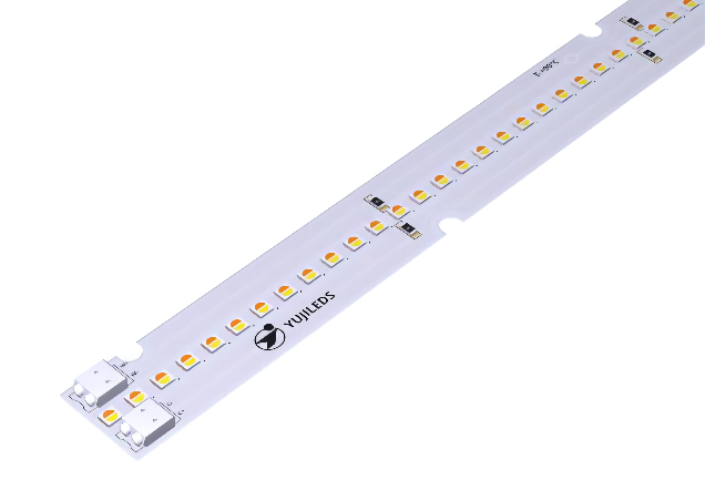

– 280mm (length) × 20mm (width), 48 2-in-1 LEDs

– Typical 600mA (per color)

– Constant current driving

– Aluminum substrate for excellent thermal dissipation

– Slim width, easy assembly

Application

– High-end architectural/residential lighting

– Photographic/broadcast lighting

– Human-centric lighting

– Photoelectric device and relevant research
